Temperature control is a fundamental element of pharmaceutical quality assurance. Whether your facility stores finished products, active ingredients, or in-process materials, maintaining validated environmental conditions is key to ensuring product safety, stability, and efficacy.
Even minor temperature deviations can have outsized consequences. A single undetected hot or cold spot can lead to product degradation, investigation delays, or even costly recalls. That is why regulators worldwide expect pharmaceutical manufacturers to demonstrate environmental control through objective, documented evidence. Enter thermal mapping.

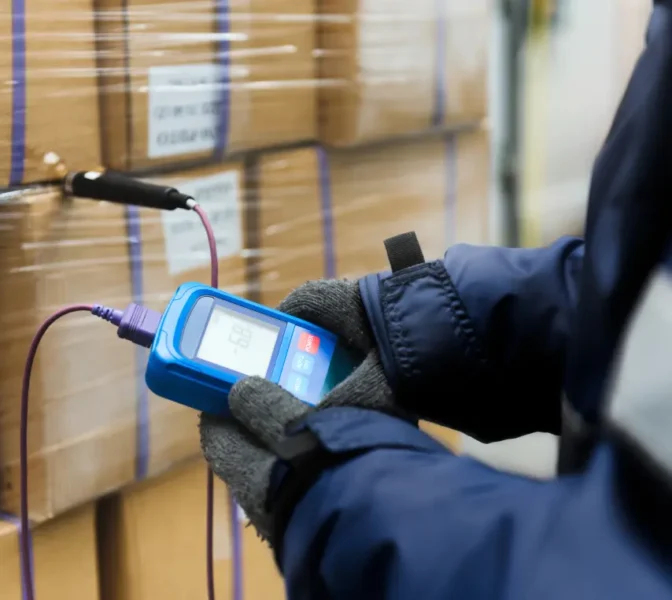

Thermal mapping, also known as temperature mapping, involves recording temperature (and sometimes humidity) at multiple points within a defined space to assess uniformity and identify variations. It provides the data needed to confirm that controlled environments perform as intended under real operating conditions.
Beyond its regulatory significance, thermal mapping serves as a strategic tool for continuous improvement. It reveals inefficiencies, verifies system performance, and supports proactive maintenance — all of which protect product quality and operational reliability.
What Is Thermal Mapping?
Thermal mapping is the process of measuring and analyzing temperature distribution over time within a defined area or piece of equipment. The goal is to understand how consistently that space maintains required temperature ranges, particularly under varying loads and environmental conditions.
In pharmaceutical facilities, thermal mapping applies across a wide range of environments and systems, including:
- Storage and warehouse areas, including cold rooms, stability chambers, and ambient warehouses.
- Equipment and process environments like freezers, incubators, ovens, autoclaves, and lyophilizers.
- Transportation systems, including refrigerated trucks, shipping containers, and passive shippers.
Each environment poses unique challenges. A large warehouse may exhibit temperature gradients due to airflow and loading patterns, whereas a freezer may experience localized warm zones near doors or compressor outlets. Thermal mapping identifies these variations before they affect product integrity.
6 Reasons to Perform Thermal Mapping
The following six reasons illustrate why thermal mapping is necessary — not only for achieving compliance, but for protecting product quality, optimizing operations, and strengthening overall process reliability.
Reason 1: Ensure Product Quality & Safety
Every temperature-controlled system in a pharmaceutical facility ultimately exists to protect product quality. Many drug substances, biologics, and vaccines are sensitive to even modest temperature fluctuations. Prolonged exposure to temperatures outside validated ranges can degrade potency, alter chemical composition, or compromise sterility.
Thermal mapping provides the evidence necessary to confirm that temperature-controlled environments consistently maintain the conditions required to protect these sensitive materials. It captures data from throughout the space, from corners and shelves to high and low areas, to ensure there are no hidden zones of deviation.
By understanding how heat and airflow behave under real-world operating conditions, facilities can confirm that all products, regardless of storage location, remain within specified limits. The result is documented assurance that supports both patient safety and product efficacy.
Reason 2: Achieve & Maintain Regulatory Compliance
Global health authorities, including the U.S. Food and Drug Administration (FDA), the European Medicines Agency (EMA), and the World Health Organization (WHO), require pharmaceutical manufacturers and distributors to maintain validated temperature control systems and provide documented evidence of that validation.
Regulations and guidelines such as FDA 21 CFR Parts 210–211, EU GMP Annex 15, and WHO Technical Report Series 961, Annex 9 explicitly reference the need for temperature qualification and mapping. These documents establish the principle that environmental conditions impacting product quality must be both controlled and verifiable.
A properly executed thermal mapping study satisfies these expectations by demonstrating that controlled spaces maintain uniform conditions during both everyday and challenge scenarios. The data and accompanying report become part of the facility’s qualification documentation that is readily available for inspectors and auditors.
For facilities operating under GMP or GDP frameworks, thermal mapping also supports continuous compliance. Performing re-mapping on a defined schedule, or after significant facility changes, provides the evidence regulators expect to confirm ongoing control.
Reason 3: Identify & Correct Temperature Variations
Even in well-designed systems, temperature variations are inevitable. Airflow imbalances, blocked vents, door openings, lighting heat sources, and equipment load configurations can all influence local temperature. Over time, these factors can create hot and cold spots that are not apparent from a single monitoring point.
Thermal mapping provides the insight needed to identify these variations and their underlying causes. The data collected during a mapping study creates a temperature profile that reveals where deviations occur, how large they are, and whether they persist over time.
Once problem areas are identified, your facility can take targeted corrective actions. These may include adjusting HVAC setpoints, redistributing airflow, modifying racking configurations, or relocating heat-emitting equipment. The goal is not only to correct individual temperature variations but also to create a more stable and predictable environment overall.
This process transforms mapping from a compliance exercise into a continuous improvement tool that strengthens process understanding and system reliability.
Reason 4: Optimize Monitoring & Control Systems
The insights gained from thermal mapping are directly applicable to system design and ongoing monitoring strategies. Once the temperature distribution of a space is known, monitoring sensors can be placed more effectively, ensuring that they capture representative and meaningful data.
Without mapping, sensors are often installed in convenient but non-representative locations that can miss true temperature extremes or generate false alarms. Mapping data identifies where temperatures are most stable, as well as where they fluctuate the most, allowing for optimal sensor placement.
Thermal mapping also confirms that control systems perform as designed. By comparing recorded temperature data with defined parameters, engineers can verify that alarms and corrective responses operate properly. The resulting data provides a performance baseline that supports future calibration, qualification, and long-term monitoring.
Reason 5: Validate Equipment & Processes
Thermal mapping helps to qualify temperature-controlled equipment and processes by providing the objective evidence necessary to demonstrate that systems perform as designed under defined conditions.
During Installation Qualification (IQ), mapping confirms that equipment is installed with adequate spacing and airflow. Operational Qualification (OQ) uses mapping data to verify that the system can achieve and maintain required temperature ranges. Performance Qualification (PQ) then demonstrates that the equipment performs consistently during routine operation and expected challenges, such as door openings or power interruptions.
Examples of where thermal mapping supports equipment validation include:
- Cold Rooms & Freezers: Confirming uniform temperature distribution and recovery times after door openings.
- Autoclaves & Ovens: Verifying even heat penetration to ensure sterilization or drying consistency.
- Stability Chambers: Demonstrating adherence to ICH Q1A environmental requirements for temperature and humidity stability.
By integrating thermal mapping into the qualification lifecycle, facilities establish confidence that their equipment functions as intended and that validated conditions remain under control.
Reason 6: Reduce Costs & Operational Risk
Although thermal mapping requires planning and resources, it yields measurable financial and operational benefits. The data it provides helps prevent costly failures, product losses, and compliance observations before they occur.
Temperature excursions are among the most frequent causes of product loss in the pharmaceutical industry. A well-executed mapping study identifies areas of concern early, before they lead to deviations or product rejections. This preventative insight can save significant time and expense that would otherwise be devoted to investigations, corrective actions, or batch recalls.
Thermal mapping also contributes to long-term cost efficiency by supporting preventive maintenance. Repeated studies over time allow comparison of current and historical performance data, making it easier to detect gradual system degradation. Addressing issues proactively extends equipment lifespan and reduces the need for emergency service calls.
Best Practices for Conducting a Thermal Mapping Study
A successful thermal mapping program requires careful planning, proper execution, and comprehensive data analysis. The following best practices provide a framework for achieving meaningful, defensible results.
1. Define the Study Parameters
Before testing, establish clear objectives and acceptance criteria. Determine the study duration, environmental conditions to be assessed, and load configurations to be tested.
2. Select & Calibrate Sensors
All data loggers or probes must be calibrated to traceable standards before use. Sensor placement should cover all areas likely to exhibit temperature variation, including corners, doorways, and high- and low-airflow zones.
3. Collect Data Under Normal & Challenge Conditions
Record temperature over a sufficient time to capture representative data. This typically includes steady-state conditions and common operational events, such as door openings or power cycles.
4. Analyze Results Thoroughly
Data analysis should identify maximum, minimum, and average temperatures, as well as any sustained deviations from acceptable ranges. Visual mapping (such as heat plots) can aid in identifying spatial trends.
5. Document & Review Findings
A comprehensive report should summarize methods, results, and conclusions, and include recommendations for any necessary corrective actions. Documentation should be suitable for inclusion in qualification and audit records.
6. Establish Requalification Frequency
Thermal mapping should be repeated periodically or whenever significant changes occur, such as equipment relocation, system modifications, or maintenance that affects temperature control.
By following a structured methodology, facilities can ensure that mapping results are both scientifically defensible and compliant with regulatory expectations.
Thermal Mapping as a Pillar of Pharmaceutical Quality
By providing clear, data-driven proof of environmental control, thermal mapping helps protect product integrity and sustain compliance with global standards.
For pharmaceutical manufacturers and distributors, thermal mapping is an investment in trust and reliability. By ensuring every product is stored and processed under verified conditions, you can deliver the safety, efficacy, and consistency that patients depend on.
Contact Performance Validation to schedule your next thermal mapping study and confirm that your facility’s controlled environments meet specifications.
